2.4G / BLE / IOT / WIFI
RF 2.4GHz RC Car & Remote DV
- IC:JTRF88611
- 2.4G remote control car / digtal camera
- Built-in 2K*14-bit flash,128Byte EEPROM, and 128Byte SRAM
- Four-way PWM simultaneously output
- Tx/Rx-Wearlink 2.4GHz SOC.
- Compliant with TELEC certification
- MIC:220-JP7412
2.4G / BLE / IOT / WIFI
Dual Control RC - 2.4GHz+BLE
- Dual control, 2.4G and BLE control atthe same time
- Tx - Wearlink 2.4GHz SOC
- Rx - AMICCOM MD8105 BLE module
- Support APP control, APP
2.4G / BLE / IOT / WIFI
2.4GHz Multi-Play: Toy Linking
- Using RF+MCU Soc & Voice chip
- Idle mode current below 100uA
- Press anyone to wakeup others within3 seconds
- Frequency hopping in 16 channels with36 groups
- Sync play music and light
- Can transfer data/voice between eachother
2.4G / BLE / IOT / WIFI
2.4GHz FHSS/DSSS RF IC
- 2.4G DSSS@133Kbps / FHSS@4Mbps
- Compatible with ANT protocol, excellectanti-interference
- Max Tx power 17dBm, -100dBm sensitivity
- Ground remote control distance of 300m
- FCC part 15.247 / ETSI ENC300-440
- Support AEC128, Auto-ACK, Auto-Resend, WOR, CRC, FEC
2.4G / BLE / IOT / WIFI
BLE Wellness Glasses
- Support 2.4GHz/Bluetooth low-power BLE 5.0
- Comply with BT specification V5.0LE,support2M,1M,500K and 125K data rates
- Built-in4M bits flash memory as user program and data storage space
- General GPIO, UART interface,SPI interface,PWM output,I2S interface, LED drive
- Support MIC input and AUDIO speaker output
- Light diffuser technology
- Light pulse frequency at 1000Hz
- Lithium battery3.7V,100mAH
- Up to 3 hours operation
- Sleep Better-Improve sleep quality,Wake up refreshed,Fall asleep easier
- Boost Energy-Reducefatigue,Feelenergized
2.4G / BLE / IOT / WIFI
BLE SOS Device
- Support 2.4GHz/Bluetooth low-power BLE 5.0
- Comply with BT specification V5.0LE,support 2M,1M,500K and 125K data rates
- Built-in 4M bits flash memory as user program and data storage space
- General GPIO, UART interface, SPI interface,PWM output,I2S interface,LED drive
- Support MIC input and AUDIO speaker output
- Ultra high decibel alarm(125dB)
- Strong light burst(700LUX)
- App,automatically send location information and make emergency contact phone calls
- Sleep(Bluetooth remains connected), power consumption is approximately 40uA
2.4G / BLE / IOT / WIFI
BLE LED Strip
- Built in 32-bit CPU, upto 48MHz clock freq
- 256KB Flash,32KB SRAM
- Interface:GPIO*24,Timer*2,SPI*2,UART,I2C,PWM*8,USB OTG
- Analog interface:8ch 10bit SAR ADC
- BT V5.0 LE
- Support 2M/1M/500K/125K data rate
- Light strip is synchronized with the color of TV/Display screen
- Support up to 20 light strip
- Local scene lighting mode
- Surrondings sound light effect mode
- Support RGB light sequence setting
- Refresh rate up to 30Hz
2.4G / BLE / IOT / WIFI
Smart Rotary Switch Panel
- MT6701
- Based on Hall Sensing Technology with 0°~360° Full Range Angle Sensing
- 3.3~5.0V Operation Power Supply,build in EEPROM(Programming at VDD>4.5V)
- Independent Output Interface:I2C,SSI,ABZ,UVW,Analog/PWM and Push-Button Function on Z-Axis
- Maximum Rotation Speed 55,000 RPM
- Output Propagation Delay<5us
2.4G / BLE / IOT / WIFI
Dual Mode BLE/RF 2.4GHz Control
- Wireless mouse function
- Supports keyboard front and backpage keys
- Can switch between BLE mode or 2.4G mode
- The current is about 17mA@3.7V，Standbycurrent ≤80uA
- USB dongle receiver：USB 2.0
- RF2.4GHz support frequency hopping，withremote control exceeding 30m
- Support USB charing and low voltagedetection with LED indication
- Suitable for offices, hospitals, schools, seminars
- System requiement：Windows/MAC/Android
2.4G / BLE / IOT / WIFI
Electronic cigarettes
- IC: CE-12
- TFT screen:-0.96” 80*160 / 1.44” 128*128
- Supports constant current / voltage output
- Supports loads of 0.6Ω-1.5Ω
- Default charging current 500mA, max.800mA
2.4G / BLE / IOT / WIFI
Two wheeled electric vehicle
- IC: FR3092E
- TFT screen:4.3” (480x272)
PC Peripheral
3-mode Gaming keyboard with LCD display
- 3-Mode = keyboard connect to PC by…
- USB (PC)
- Bluetooth (BLE/BT3.0)
- 2.4GHz
- Main features:
- N-key rollover
- Response time <5ms@2.4GHz
- LCD up to 320x320
PC Peripheral
3-mode Gaming Mouse
- USB (PC)
- Bluetooth (BLE/BT3.0)
- 2.4GHz
- Main feature:
- Report rate : 1KHz@2.4GHz
Video
WiFi dual mode smart babymonitor
- Point to point transmisson, RTOS protocol, andindependent use without router
- Up and down, left and right motor movementand digital zoom 1.5-2x
- 5”HD color display
- 720p full HD video
- 80-90degree wide angle lens
- Buit in motion detection and wake-up function
- Level 4 sound volume indicator
- Sound noise reuction function
- Two way intercom
- Lullaby，white noise and natural sound
- Realtime infant ambient temperature display over range alarm
- Hihg image quality, low delay
- Lullaby，white noise and natural sound
- Extra long distance>300m
Video

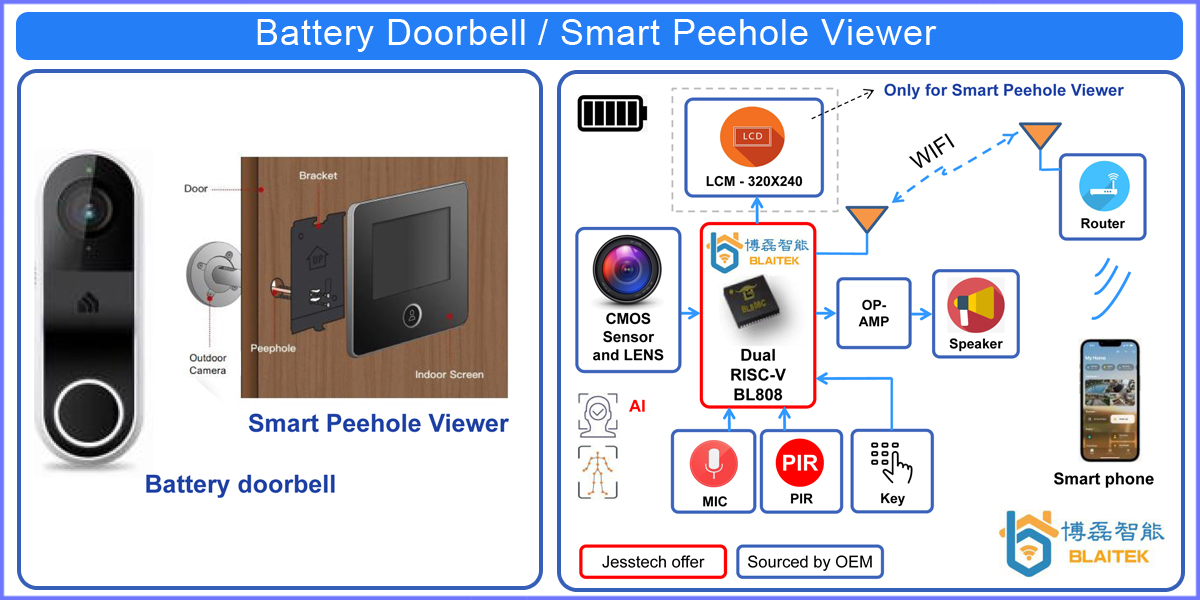

Battery Doorbell / Smart Peehole Viewer
- Dual RISC-V, ISP, H.264, WIFI + BLE
- Low power - Battery life 4 to 6 months(wake up 10 times a day, 5 times during theday / 5 times at night / 30s each time)
- Ultra fast system response, from poweron to encode video to router less than0.3s
- Support 2-way audio with AEC, TFT display
- Support Amazon Alexa, Googleassistant
Video

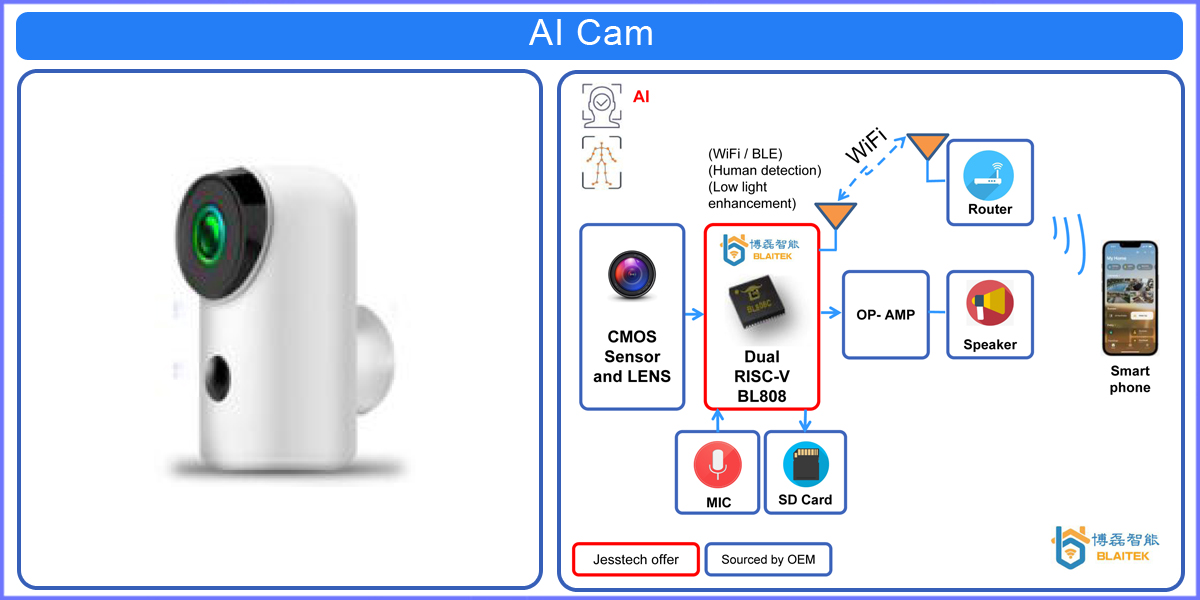

AI Cam
- FHD H.264 streaming
- AI Face recognition / Human detection
- 2 - way Audio W / AEC
Video
VGA Cam(connect to smartphone for viewing
- Image resolution 300Kpixel,at25-30fps
- RF in WIFI(2.4~2.4835GHz) frequency band
- Video compression:Mjpeg
- Power consumption around 0.8W(camera+RF+DSP)
- Transmission distance around 50m in openarea(use iphone13,depends on smartphone)
- Viewing angle around 60 degree(diagonal)
- Apps support:iOS,Andriod platform
- Apps support video (avi format) / photo (jpeg format) record
- Can add SD card for video recording (max 1TB)
- Video Recording(SD Card) and smart phone view at the same time
- Smart phone and device can have control command
- Automatic best WIFI channel scanning
- Proprietary protocol-reduce RF interference
Video
HD Cam(connect to smartphone for viewing
- Image resolution 1M pixel,at 20-25fps
- RF in WIFI(2.4~2.4835GHz) frequency band
- Video compression:H264
- Modulation:BPSK/QPSK/64-QAM
- Power consumption around 2.2W
- Transmission distance around 150-200m in open area(use iphone13,and depends on smartphone)
- Voice transmission available
- Viewing angle around 110 degree(diagonal)
- Apps support:iOS,Andriod platform
- Apps support video(mp4 format)/photo(jpeg format)record
- Motion Detection
- Smart phone and device can have control command
- Automatic best WIFI channel scanning
- Proprietary protocol-reduce RF interference

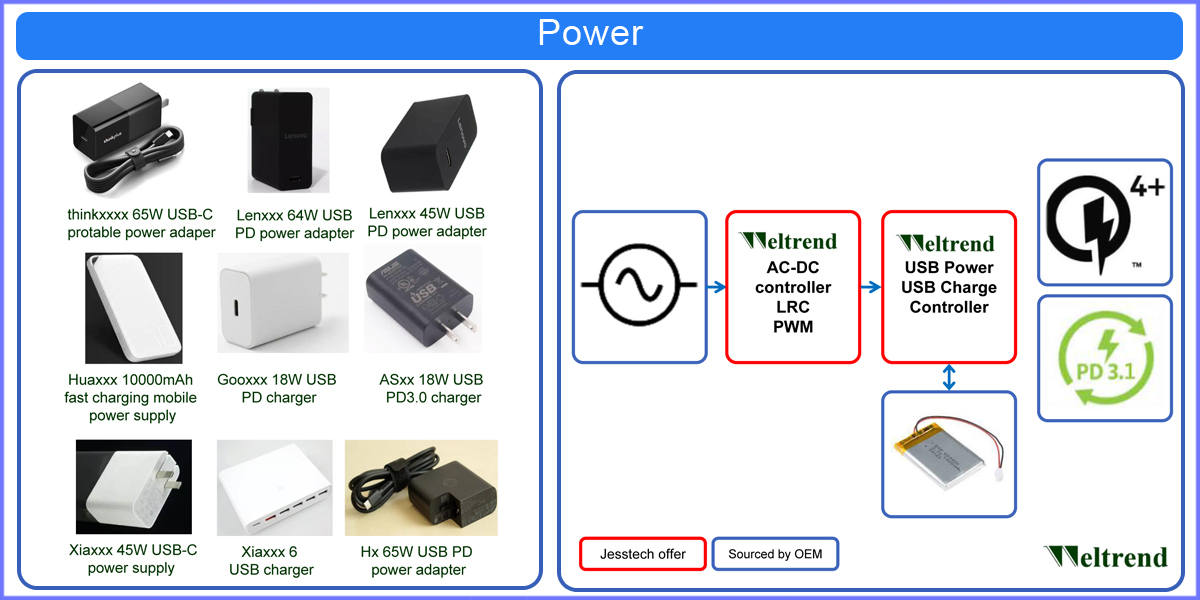

Power Solution
Power
- QC4+ / PD Power Adaptor / Charger
- Power Bank
