Video Solution - 2.4G Video

2.4GHz video baby monitor, 2.4GHz video surveillance, 2.4GHz video toys

2.4GHz video baby monitor

Support 1.8"~7"TFT,

Resolution up to VGA, Max: 25fps@VGA

2-way audio, 4T1R (quad view / switch)

Storage media: SD, MMC, up to 32GB

USB: Wireless PC camera, USB MSC

TV out RTC Timer

16X12 detect block motion detection funtion

Temperature, VOX, Lullaby, Night Vision, PTZ.

2.4GHz video surveillance

MPEG4, WVGA video

2-way audio

4T1R quad view

SD, USB video

Motion detection, TV out

2.4GHz video toys

2.4GHz video RC Car/Heli

2.4G wireless digital technology

MJPEG, QVGA video

2-way video, 2-way audio, SD, USB

Motion detection, TV out

Video Solution - 2.4GHz HD Video

2.4G FHSS HD Car Backup CAM (Battery operated), 2.4G FHSS HD Babymonitor (Battery operated), 2.4G FHSS HD Security Camera

2.4G FHSS HD Car Backup CAM(Battery operated)

- SN937XX

H.264 video encode

1T1R / 2T1R

HD / FHD monitoring panel

Power saving mode of Tx ~300uA (Battery operated)

>200m in open area

Image Latency ~ 150ms

TX wakeup time < 2s

Verical lens distortion compensations

3D image noise reduction

Dynamic Range compensation

\

2.4G FHSS HD Babymonitor (Battery operated)

- SN937XX

H.264 video encode

1T1R / 2T1R / 4T2R

HD / FHD monitoring panel

Power saving mode of Tx ~300uA (Battery operated)

>200m in open area

Battery Operated Tx/Rx, power saving mode for both Tx/Rx

Intercom / 2 way talk between Rx

Image Latency ~ 150ms

TX wakeup time < 2s

Verical lens distortion compensations

3D image noise reduction

Dynamic Range compensation

Support audio only mode

SD photo taking / video record

2.4G FHSS HD Security Camera

- SN93710/93701

H.264 video encode

Up to 4T1R/6T1R

Main stream FHD/HD slave stream 640x320

UVC video output, UAC audio output to internet processing device

15 ~ 30 frame /sec depends on no of Tx and resolution (up to 300m open area)

Battery operated for Tx

IR + Microwave detection

OTA firmware up grade

Sleepmode current < 400uA

3D denoise, vertical lens distortion compensations

RX side, LCD panel support with UVC output

Motion detection / Dynamic range compensation

Video Solution - Wifi Video

Wifi Security, Wifi IP CAM, Wifi Camera Application Smart Door Bell

Wifi Security

1080P, H.264, 30fps

Simple installation, fast boot up time ~1s

Support up to 9 lens

Support for large capacity hard disk video

Independent video archives

HDMI output

Mobile phone instant viewing

Save a lot of cost of production

-Support MiPi Sensor

-Built in DDR

-A simplified eBOM

Wifi IP CAM

VGA video, 2-way audio

Easy setup (no PC, use QR code)

Support all NAT types connection (full-cone, restricted cone, port-restricted cone, relay mode)

support all kinds of environment

Sonix APPS (iPhone & Android)

Wifi Camera Application Smart Door Bell

- SN9868X

LCD Panel display

SD card video / photo storage

Push notification

Low power consumption

Digital image stabilizer

Motion detection

Image noise reduction(3DNR)

Support dual MIPI sensors

Video Solution - Wifi Video

Wifi Drone and Remote Toys, Wifi Dash Camera, Wireless Car Backup cam

Wifi Drone and Remote Toys

- SNC7312X (VGA without local recording, RTOS,MPEG Encode)

- SN9867X (720p/1080P with local H.264 recording, RTOS)

Low latency < 200ms

Smart phone/ tablet image monitoring and control

Streaming distance VGA around 50m, 720P around 100m

iOS/Andriod support

RTOS System

Video record

Wifi Dash Camera

- SN9866X

Video record 1080P(30fps) + 720P(20~30fps) streaming(Wifi)

RTOS System < 100ms

H.264 Video encode

G-Sensor support

Loop record support

iOS/Andriod support for smart device

OTA firmware update

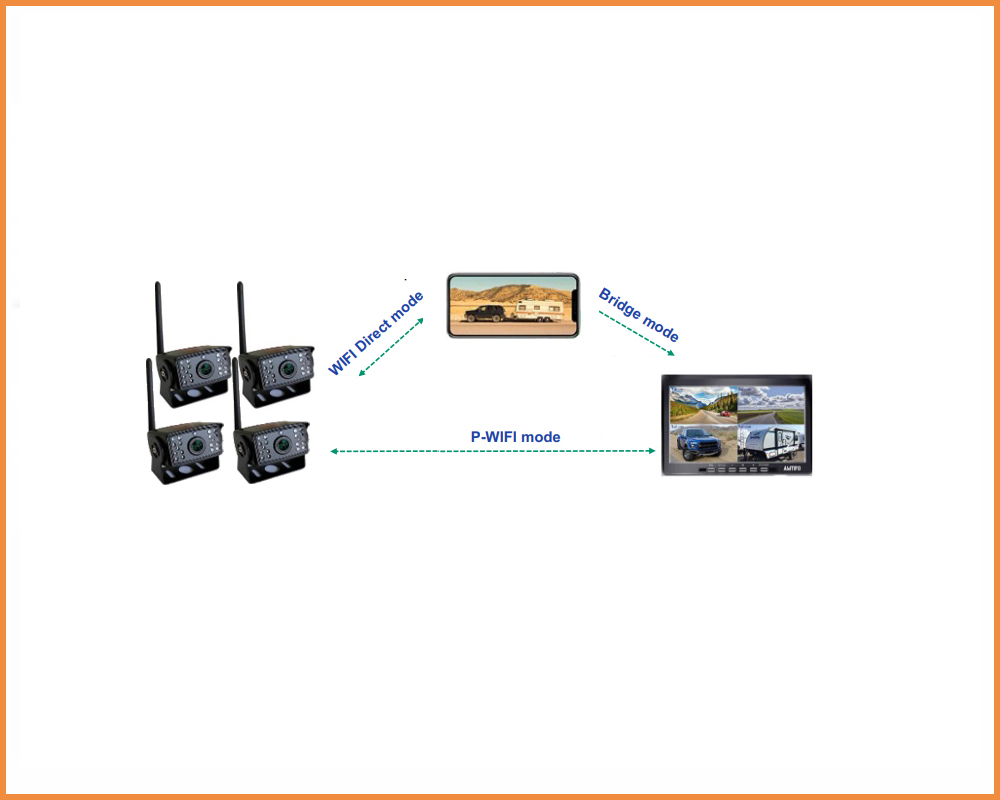

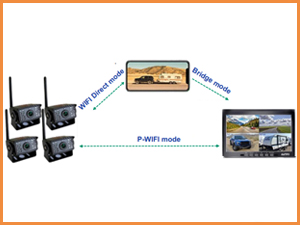

Wireless Car Backup cam

- SN9337X / SNCC6X

Fast boot up time

Low latency < 100ms

Support 4T1R (4 CAM to 1 receiver)

VGA(30fps) / 200m distance

Support panel / smart phone monitoring

Industrial grade operating temperature

iOS/Andriod smart device support

Video Solution - Classic

Car Camcorder connect with console, Car Camcorder (With Screen)

Car Camcorder connect with console

- SN98293

1080p resolution recording

Car DVR video output to console

Console touch screen, can control car CAM (by USB UVC command)

Car Camcorder (With Screen)

0.3M~5M cmos sensor, 2″~3.5″panel

720P resolution, cycling recording

H.264 video format G-sensor G –force detect

GPS data record

PC app with google map tracking support e

Motion detection

Double sensor support

Video Solution - Classic

QR Code, PCAM, Baby swing bed

QR Code

PCAM

TV PCAM

Car camcorder PCAM
