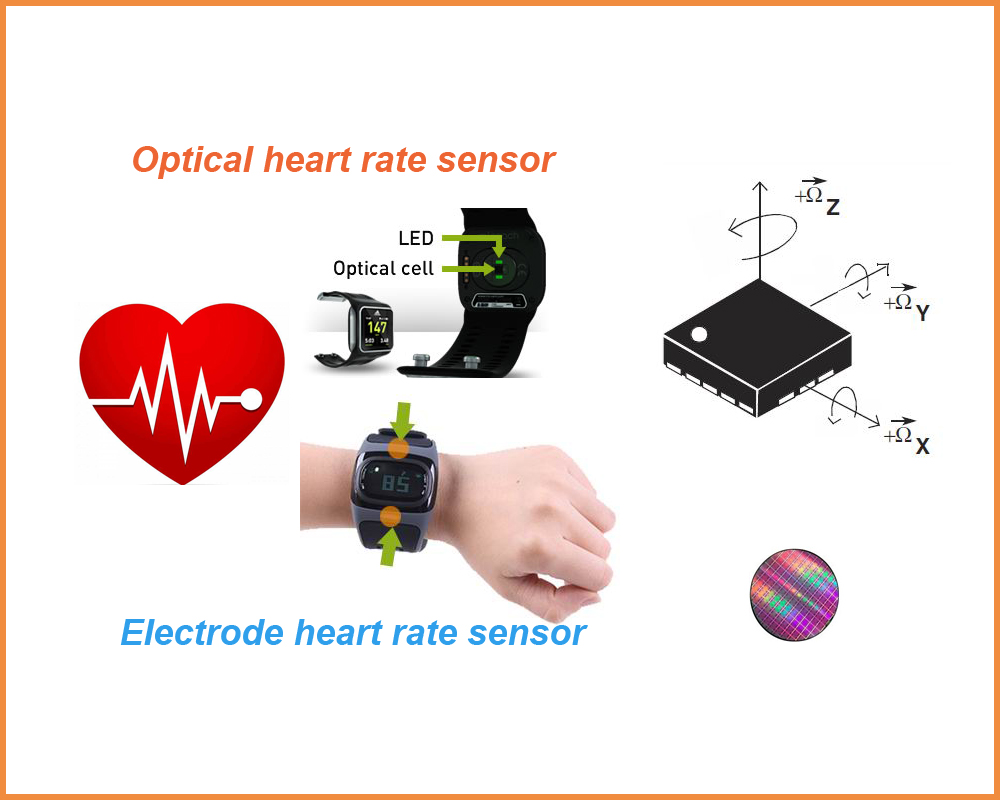

Our past PCBA

Control PCBA, RF Module, WiFi Video Module

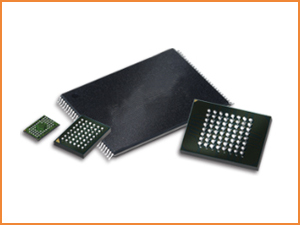

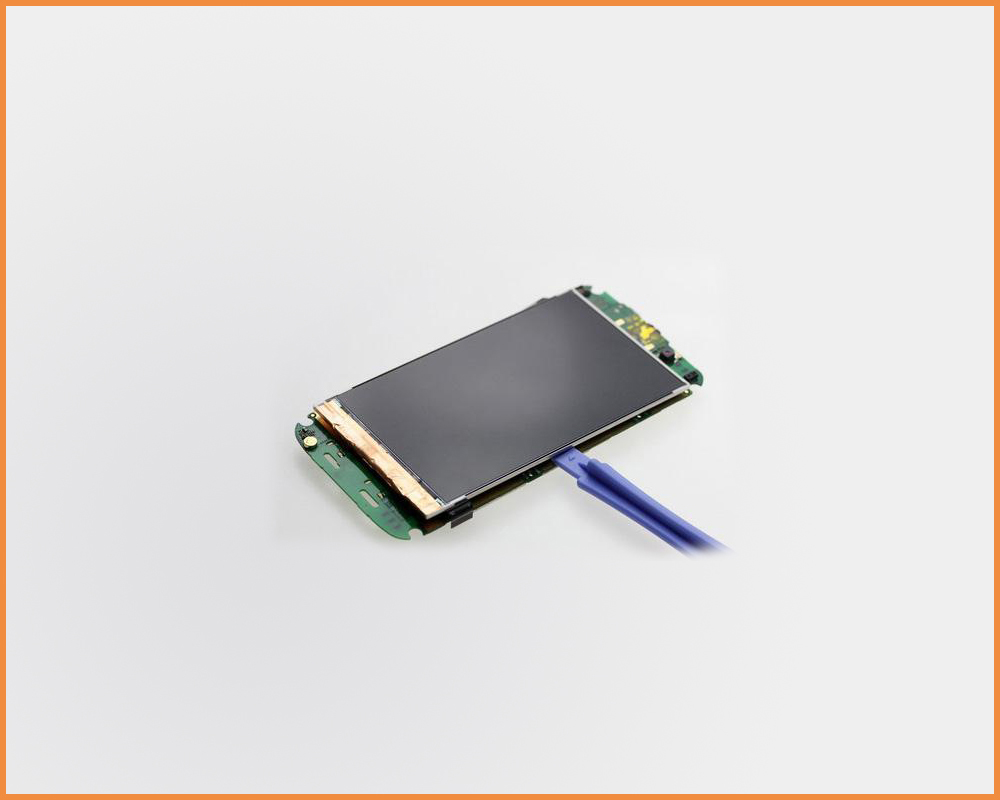

Manufacturing process

SMT, Bonding, SMT visual inspection, Assembly & Testing

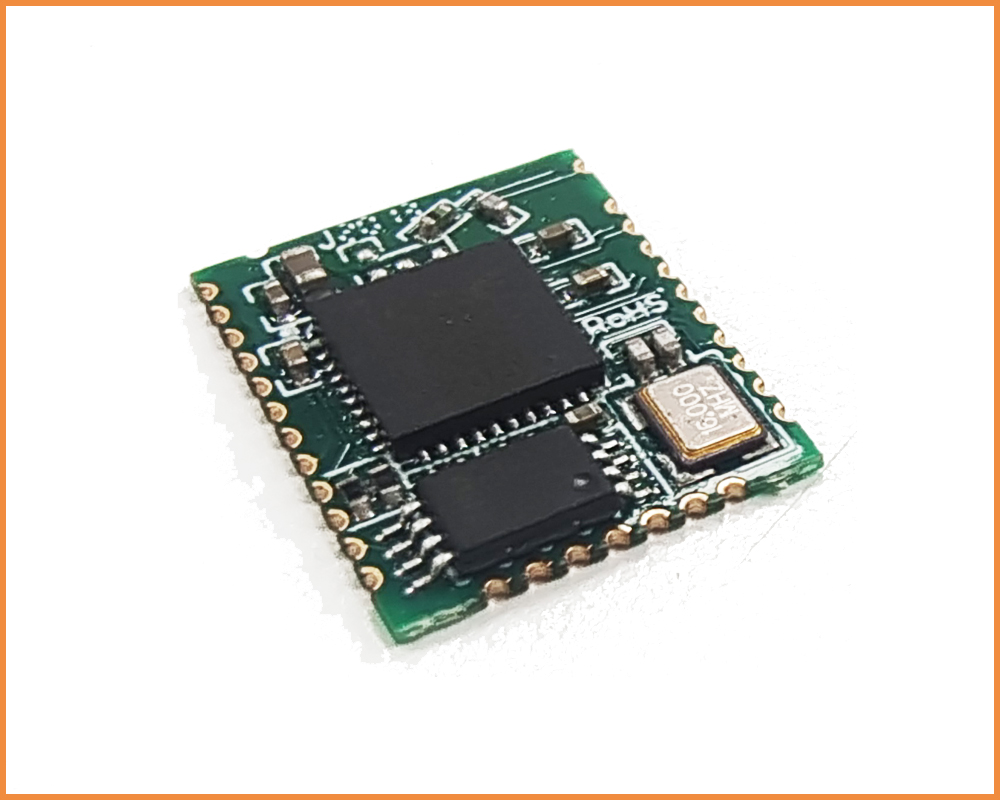

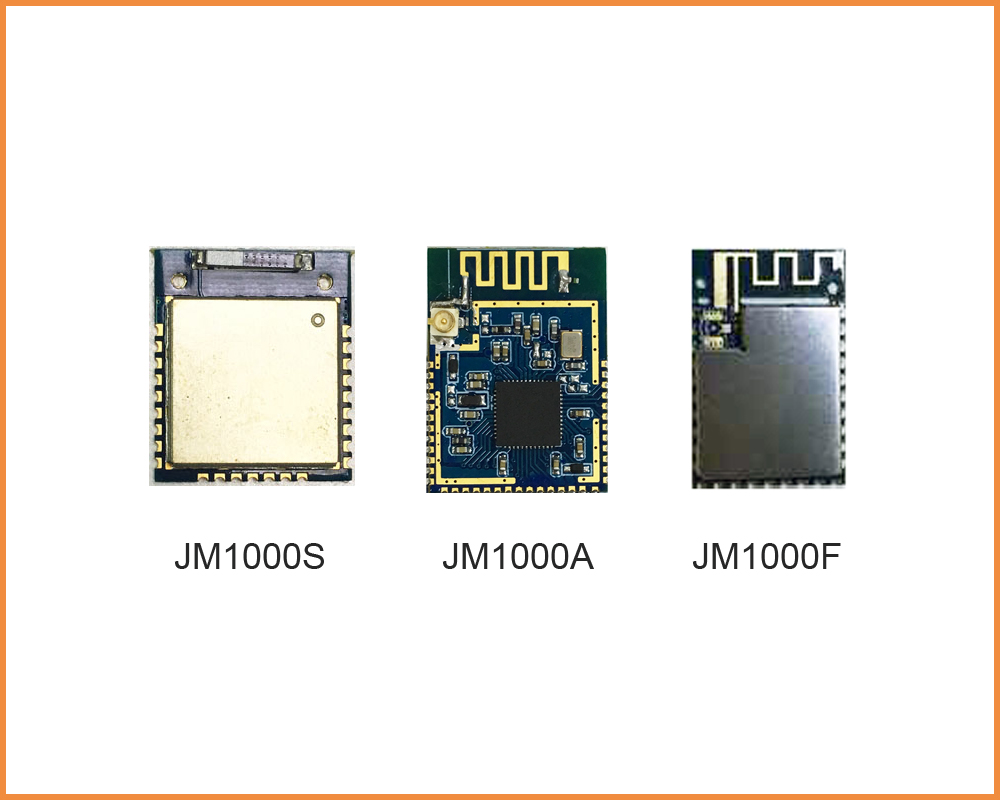

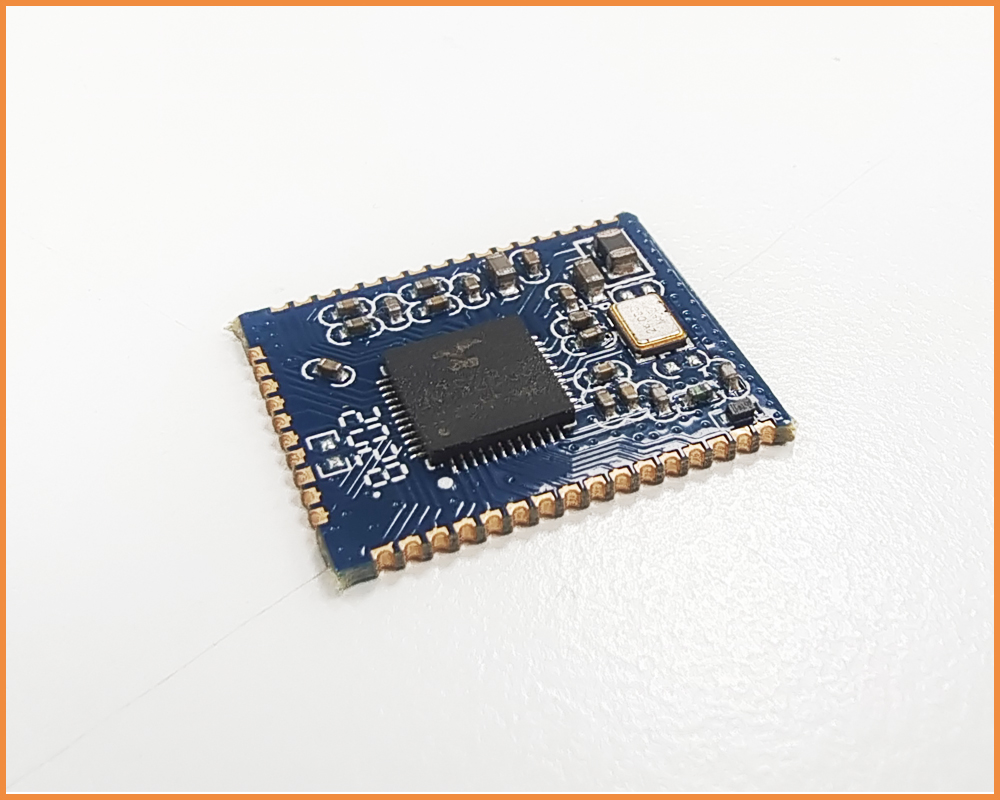

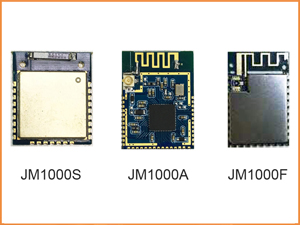

JM7130S19PL-C

IC: A7130+AP1288 GFSK Transceiver

Data rate: 4Mbps

Tx power:19dBm+1/-2dBm

Sensitivity:-90dBm(typical)@4Mbps

Voltage: 3.3V

Current: Tx:200 mA, Rx:26mA, Sleep:<10uA

Size: 23mm*21.5mm*4.2mm

JM7130S19A

IC:A7130+AP1288 GFSK Transceiver

Data rate: 4Mbps

Tx power:19dBm+1/-2dBm

Sensitivity:-90dBm(typical)@4Mbps

Voltage: 3.3V

Current: Tx:200 mA, Rx:26mA, Sleep:<10uA

Size:15mm*15mm*3.2mm

B797

IC:A7130+AP1110 GFSK Transceiver

Data rate: 4Mbps

Tx power: 21dBm+1/-2dBm

Sensitivity:-90dBm@4Mbps

Voltage: 3.3V

Current: Tx:250mA, Rx:30mA, Sleep:<10uA

Size:15mm*15mm*3.2mm

M06E-XA

IC:A7106 GFSK/FSK Transceiver

Data rate: 500kbps

Tx power:0dBm

Sensitivity:-95 dBm @ 500kbps

Voltage: 1.9V - 3.6V

Current: Tx:19 mA, Rx:16 mA, Sleep:1 uA

Size: 20mm*13mm*2mm

J2.4GM20S3

IC: A7121+AP1110 GFSK Transceiver

Data rate: 3Mbps

Tx power:20dBm+/-2dBm

Sensitivity:-88dBm@3Mbps

Voltage:3.3V

Current: Tx:200mA, Rx:38mA, Sleep:<70uA

Size: 24mm*20mm*4.2mm

JM7130S20PL

IC: A7130+AP1110 GFSK Transceiver

Data rate: 4Mbps

Tx power:22dBm+/-2dBm

Sensitivity:-90dBm(typical)@4Mbps

Voltage:3.3V

Current: Tx:200mA, Rx:26mA, Sleep:<10uA

Size: 23mm*21.5mm*4.2mm

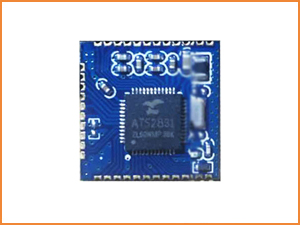

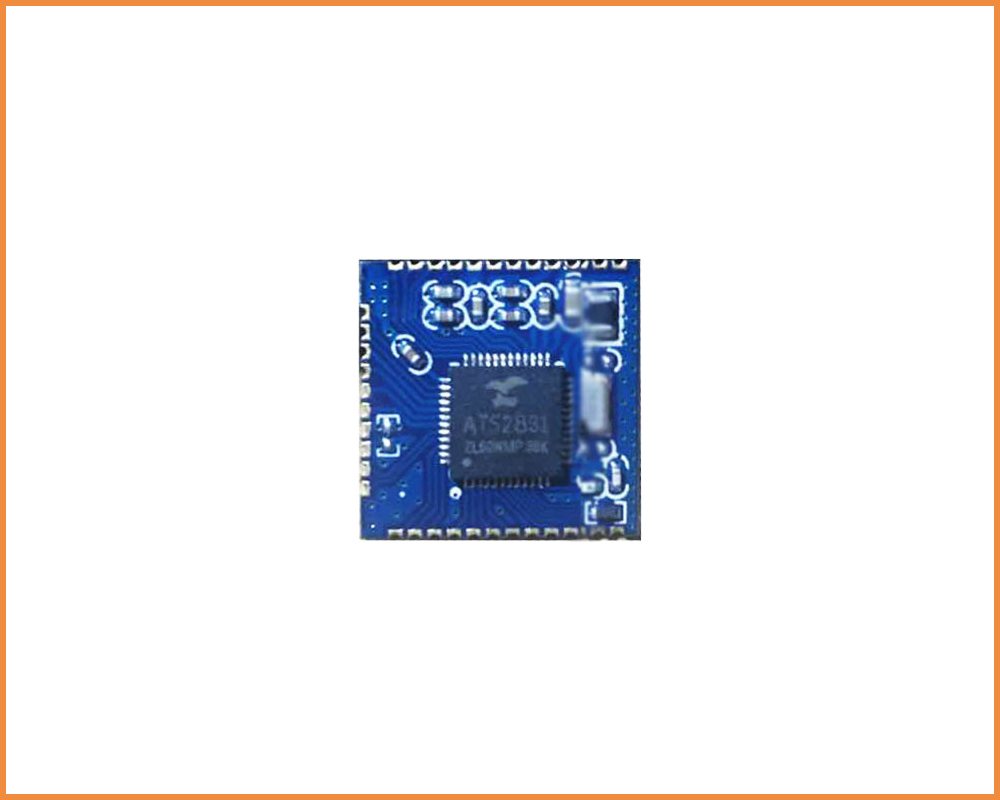

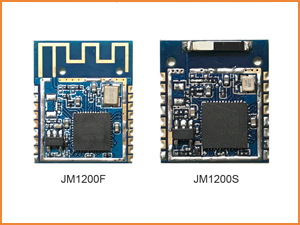

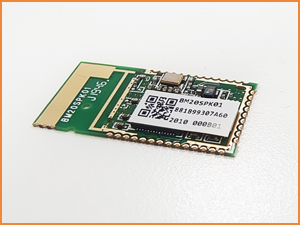

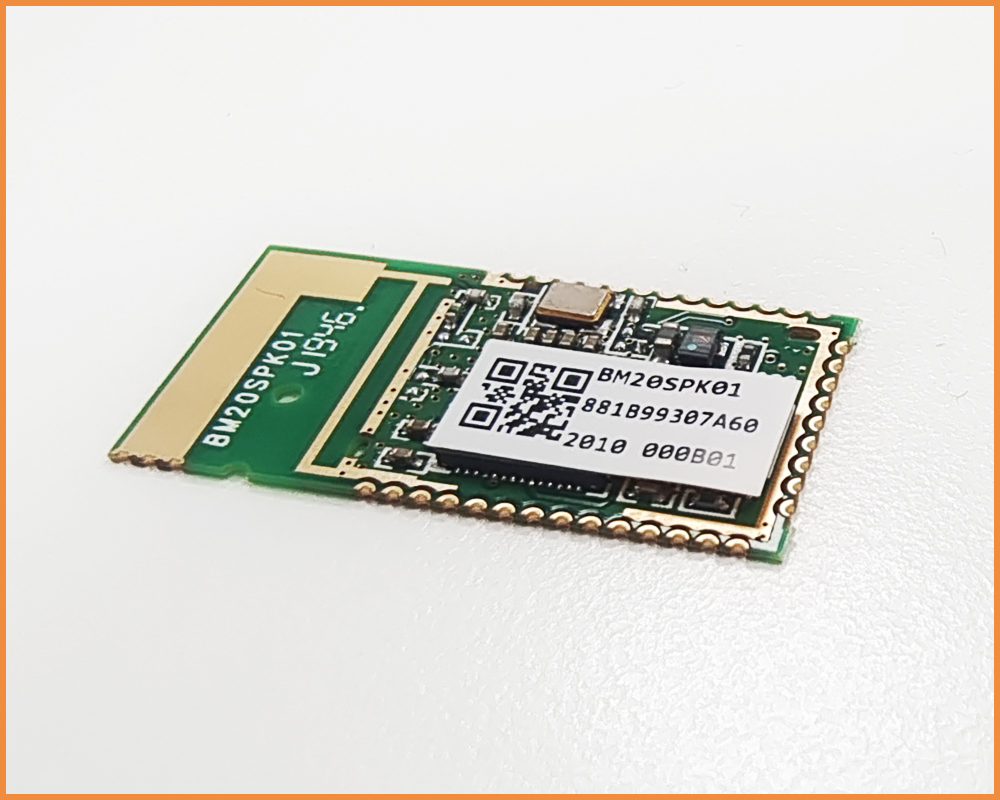

M-ATS2835

Audio module

Size: 26mm*15mm*1mm

QDID: 124554/113422

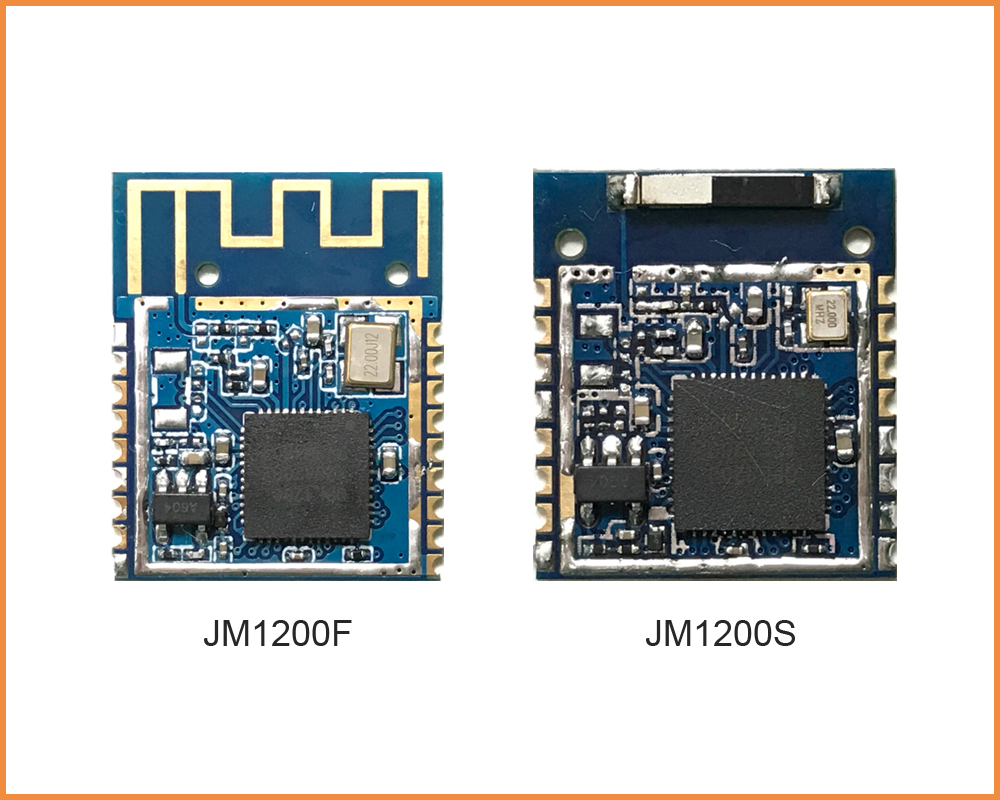

BM78SPP03

Dual mode SPP+BLE

data transeiver module

Size:12mm*15mm*2mm

QDID:110108

CH16HL

Communication serial port:UART

Transmission rate: 1 Mbps

Frequency range: 2.4~2.4835GHz

Operating signal: 0~39

Transmission power:0 ≤ Output Power ≤ +10dBm

Receiver sensitivity:< 0.1% BLE 1M at -94dBm

Antenna Type: PCB board mounted antenna

DID(s): D053945,D053944

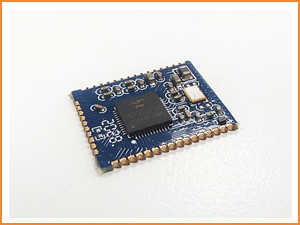

MD8105

Features:Transparent mode BLE Module

Size:15.5mm*13.5mm*2.5mm

QDID:97374,73449,72683

MD8107

Features: 128kB SoC BLE module

Size:15.5mm*13.5mm*2.5mm

QDID:97374,73449,72683

MD8107M0

Features: 256kB SoC BLE module

Size:15.5mm*13.5mm*0.8mm

QDID:97374,113232,113718

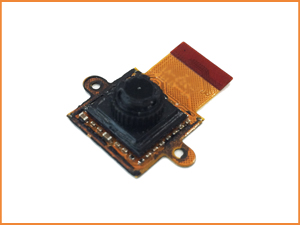

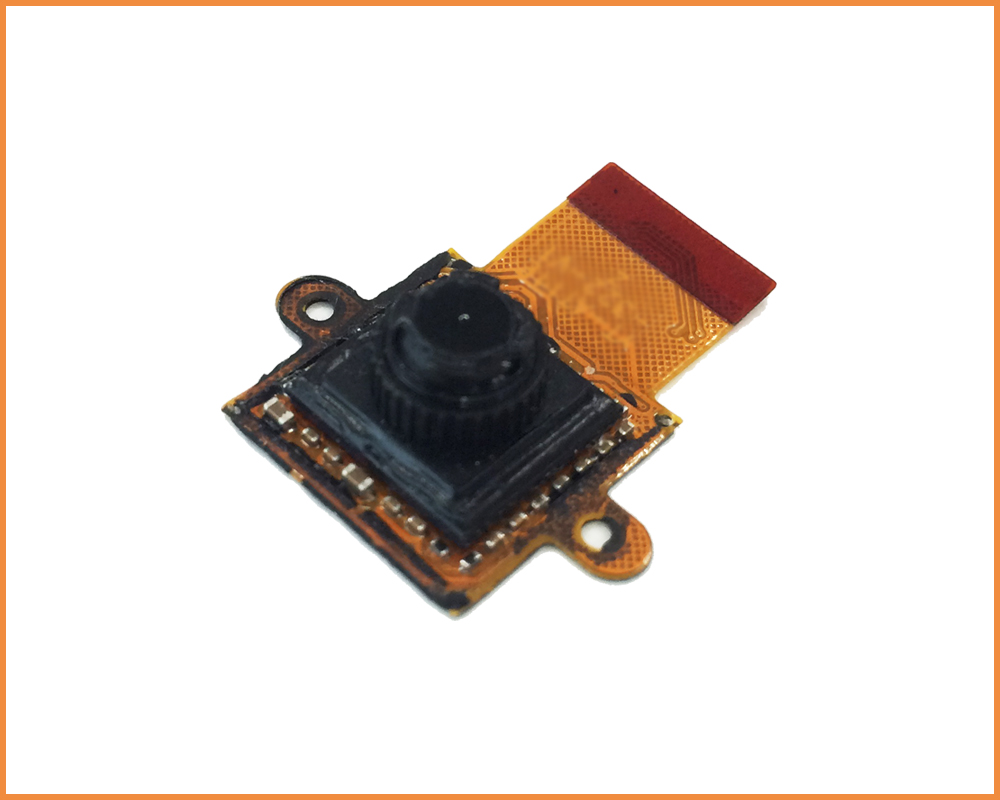

VGA WiFi Module

PCB Size: 35 x 21mm

VGA MJPEG recording in smart phone

Distance around: 50m

Image resolution: 300K pixel, Max 25 - 30fps

RF Output Power: 11n, ≥14dBm@11n

Receiver Sensitivity: 11n(54Mbps)≤-67dBm@10%

Viewing Angle(Diagoal): 60 degree

Power consumption: WiFi connected operation around 0.9W
